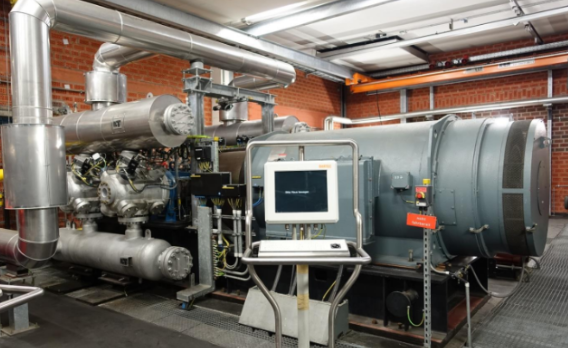

Natural Gas Storage Compressor System

• Type: Complete Natural Gas (NG) Compressor System

• Application: Natural Gas Storage

• Configuration: One-piece, fully integrated package

Compressor

• Manufacturer: Ariel

• Model: JGK/4

• Design: Four-throw, single-stage reciprocating compressor

• Cylinders: 4 × JGK:T class, 7-1/4"

Process Data

• Suction Pressure: 40 bar(g) / 580 psi(g)

• Discharge Pressure: 85 bar(g) / 1,233 psi(g)

• Volume Flow: 60,000 Nm³/h (≈ 54 MMSCFD)

• Capacity Control: HydroCOM, stepless, HE-side (40–100%)

Drive

• Motor: Schorch Ex-d electric motor

• Motor Power: 1,800 kW

• Speed: 750–1,000 rpm

• Control: Frequency controlled

Auxiliary Systems

• Air-cooled gas cooler

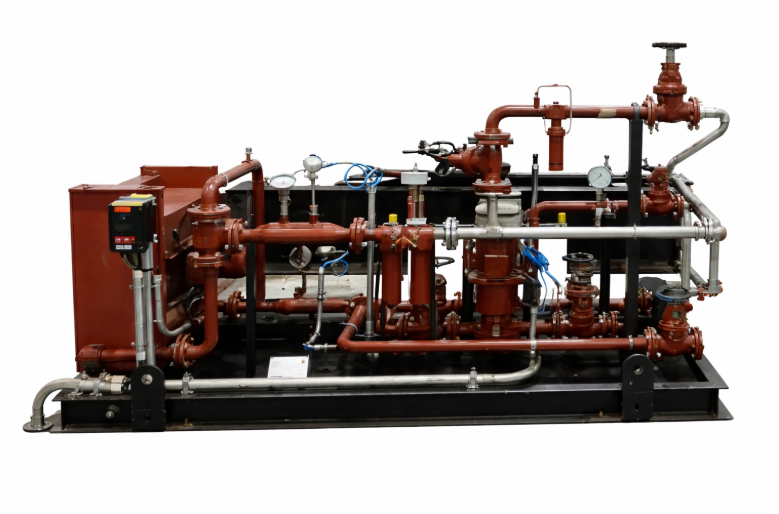

• Complete oil systems

• HydroCOM control system

• Siemens PLC incl. MCC

• PRONOST online condition monitoring

Additional Information

• Year Built: 2002

• Condition: Used, complete system
