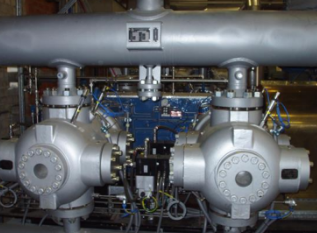

NATURAL GAS COMPRESSOR PACKAGE – NG STORAGE (EX ZONE I)

• Type: Complete Natural Gas (NG) Compressor System

• Application: Natural Gas Storage

• Configuration: One-piece or two-piece integrated package

• Design: Suitable for Ex-Zone I operation

• Condition: Used, complete package

• Year of Manufacture: 2000 (approx.)

Compressor

• Manufacturer: ARIEL Corporation

• Model: JGT/4

• Design: Four-throw, single-stage reciprocating compressor

• Cylinders: 4 × JGK:T class, 6-1/4"

• Capacity Control: HydroCOM, stepless control on CE and HE side (40–100%)

Process Data

• Suction Pressure: 40 bar(g) / 580 psi(g)

• Discharge Pressure: 85 bar(g) / 1,233 psi(g)

• Volume Flow: 30,000 Nm³/h (approx. 27 MMSCFD)

Driver

• Manufacturer: CATERPILLAR

• Model: G3516 LE Gas Engine

• Rated Power: 857 kW

• Speed Range: 900 – 1,200 rpm

Auxiliary Systems

• Bronswerk air-cooled gas cooler

• Complete lubrication oil systems

• HydroCOM control system

• Siemens PLC including MCC

• PROGNOST online condition monitoring system

Scope of Supply

• Complete compressor package

• Compressor, driver, auxiliaries and control system

• Available as skid-mounted one-piece or two-piece unit
