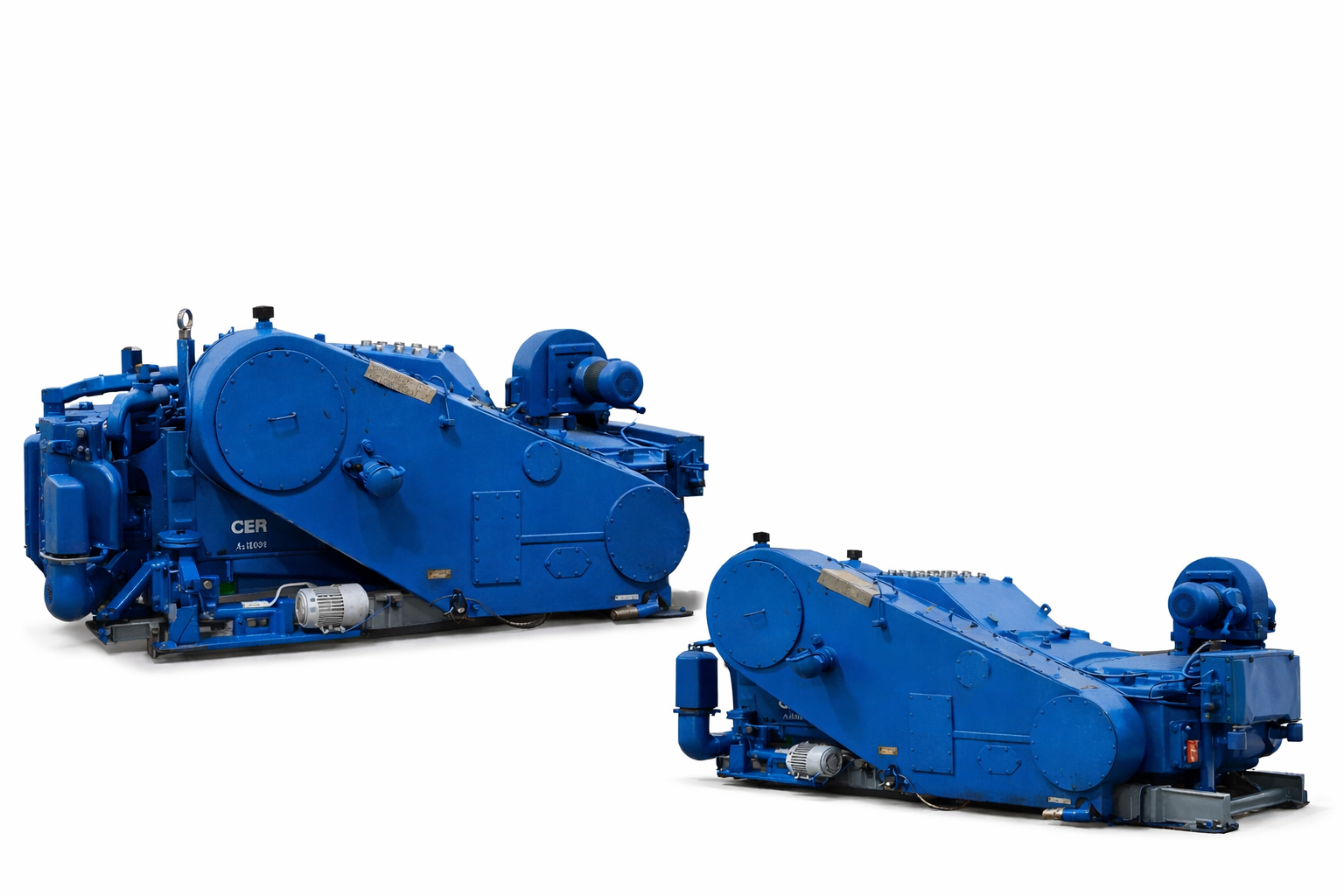

Mud Pump Oilwell A-1100-PT

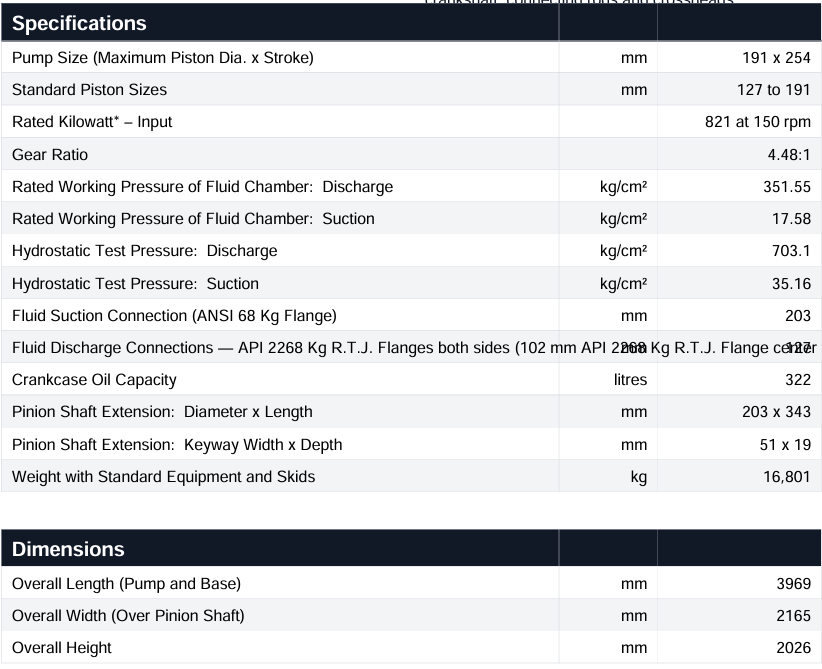

Pump Size (max. Piston dia x stroke) 7 3/4" x 10"

Standard Piston Sizes 5" to 7 314"

Rated Brake Input Horsepower 1100 HP at 150 rpm

Gear ratio 4,48:1

Rated Working Pressure Fluid Chamber: Discharge 5000 PSI

Suction 250 PSI Hydrostatic Test Pressure

Discharge 1000 PSI, Suction 500 PSI

Fluid Suction Connection (ANSI 150# Flange)

8" Fluid Discharge Connection (API 5000# RTJ, Flanges both sides)

5" Crank Case Oil Capacity 85 Gallons Pinion Shaft Expansion:

Diameter x Length 8" x 13 1/2" Keyway Width x Depth 2" x 3/4"

Weight with Standard Equipment and Skids 37.039 lb

Overall Length (Pump and Base) 13' 0-1/4"

Overall Width (Over Pinion Shaft) 7' 1-1/4"

Overall Height 6' 7-3/4"

Performance Data: Maximum Displacement 919 Gallons at Pump speeds 150 RPM and 1100 HP

RNP d.o.o. Certification:

RN ISO 90001-2015 - EN ISO 14001-2015 - EN 3834-2 - EN 1090-1

Wedders Test Certification SMAW - TIG-MAG for various type of materials and positions

European Welding Engineer and International Welding Engineer Title

Further Information and Images on request.
