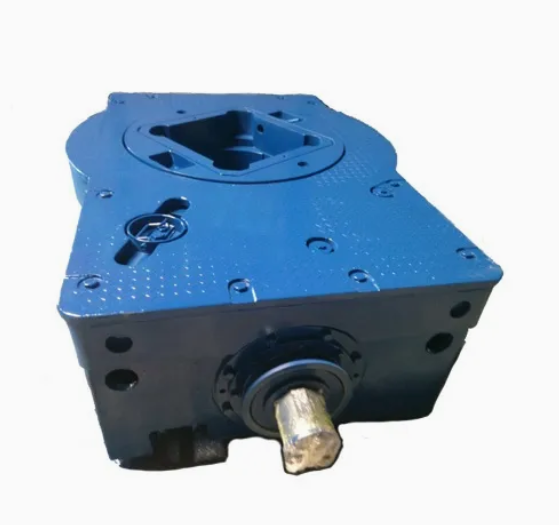

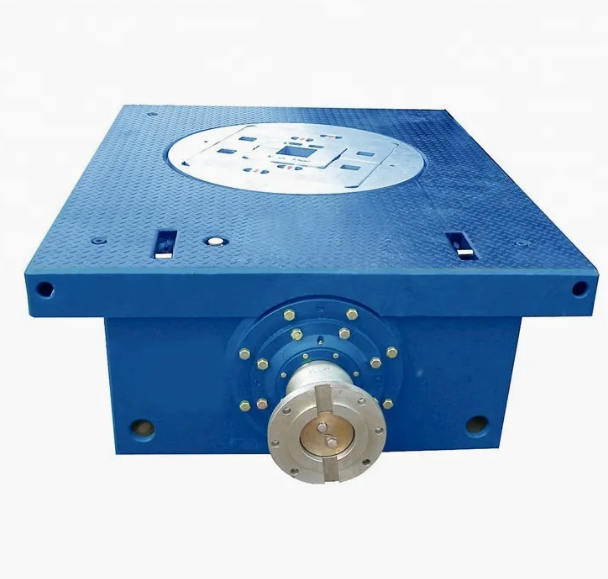

Upetrom MLR 275 rotary table drilling rig - used

Upetrom MLR-275 Rotary table

TECHNICAL CHARACTERISTICS
Denomination Rotary table MRL 275
538.21-00.00.00.1
• The diameter of the passage through the rotary table
(conf.API Spec.7K) 698,5 mm (27.½”)
• Maximum static load 500 tf (550USton)
• Maximum power 600 CP
• The maximum moment at the rotating rotor  2800 daNm (20650 lb.ft)
• The maximum moment at the rotating rotor 12000 daNm (88507 lb.ft.)
• Maximum rotor speed 300 rpm
• Transmission report 3,68:1
• Distance between the center of the rotary table and the center of
the first row of teeth of the gear wheel 1352,6 mm (53.1/4”)
• Oil pan capacit 40  l
• Working temperature - 29ºC to + 50ºC
• Informative net weight  (including table square and lifting hooks) 5316 kg
