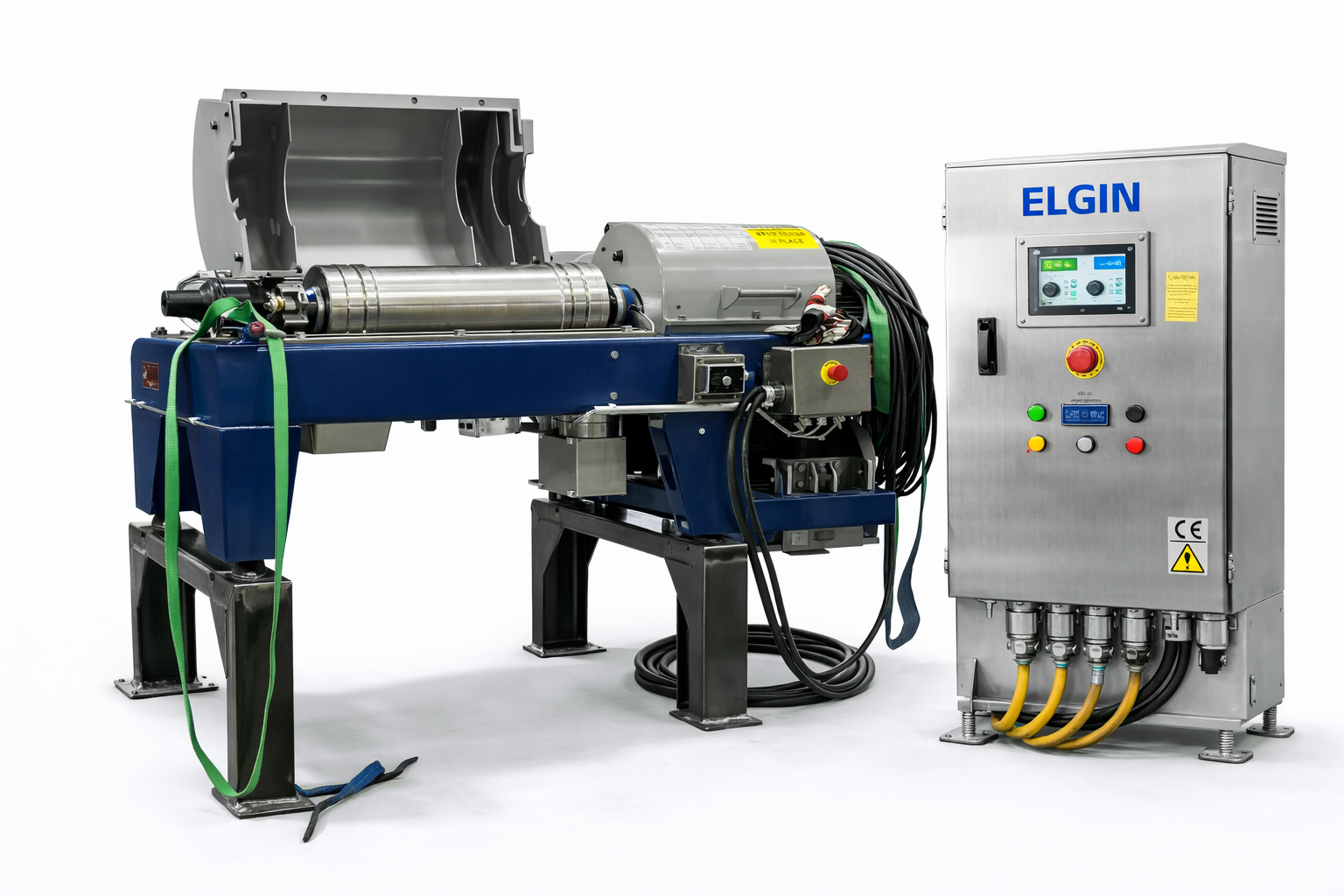

ELGIN ESS-936 CENTRIFUGE ASSEMBLY 1 460V

60Hz and 380V / 50Hz Dual Rated Motors – 3 Phase Electrical

 Independently Variable Back-Drive with Integrated Two-Stage Planetary Gearbox

 Feed Tube, Scroll, Bowl, Hubs and Cover to be 304 Stainless Steel

Gaskets and Seals to be Nitrile. All Fasteners to be Stainless Steel

Full-Length Tungsten Carbide Tiled Conveyor. Dechrome 90 or Tungsten Carbide Feed Ports, Discharge Ports and Plows. Integrated Replaceable Solids Discharge Cover Guard

Carbon-Fiber Poly-Chain Belt Drive System

Four Engineered Vibration Isolators. Powder Coated. Class I – Division 2 Explosion Proof NEMA Premium Motors and Electrical. NEMA 4X Terminal Box

Two Temperature Sensors, One Vibration Sensor and One Lid Sensor

All Electrical Components and Motors to be CE-Rated. ELGIN VFD Control Panel 15HP, 5HP and 5HP Yaskawa VFD Drives

Free-Standing NEMA 4X Class I – Division 2 Stainless Steel Control Panel

All Electrical Components to be CE-Rated. Independent Variable Speed Control of the Main Drive and Back-Drive

Integrated Bearing Temperature Both Main and Back-Drive Bearings), Vibration and Motor Amperage Interlocks

HMI Touch-Screen Graphical User Interface. Integrated Data- Logging and Ethernet Ported for Remote Diagnostics. Includes Push-Button E-Stop and Alarm Reset

Includes Non-Resettable Hour Counter. 50’ of Electrical Cable and Communications Wiring. Elgin Colors. Elgin Branding

Assembly 2023 - Unit not used and located in Celle
