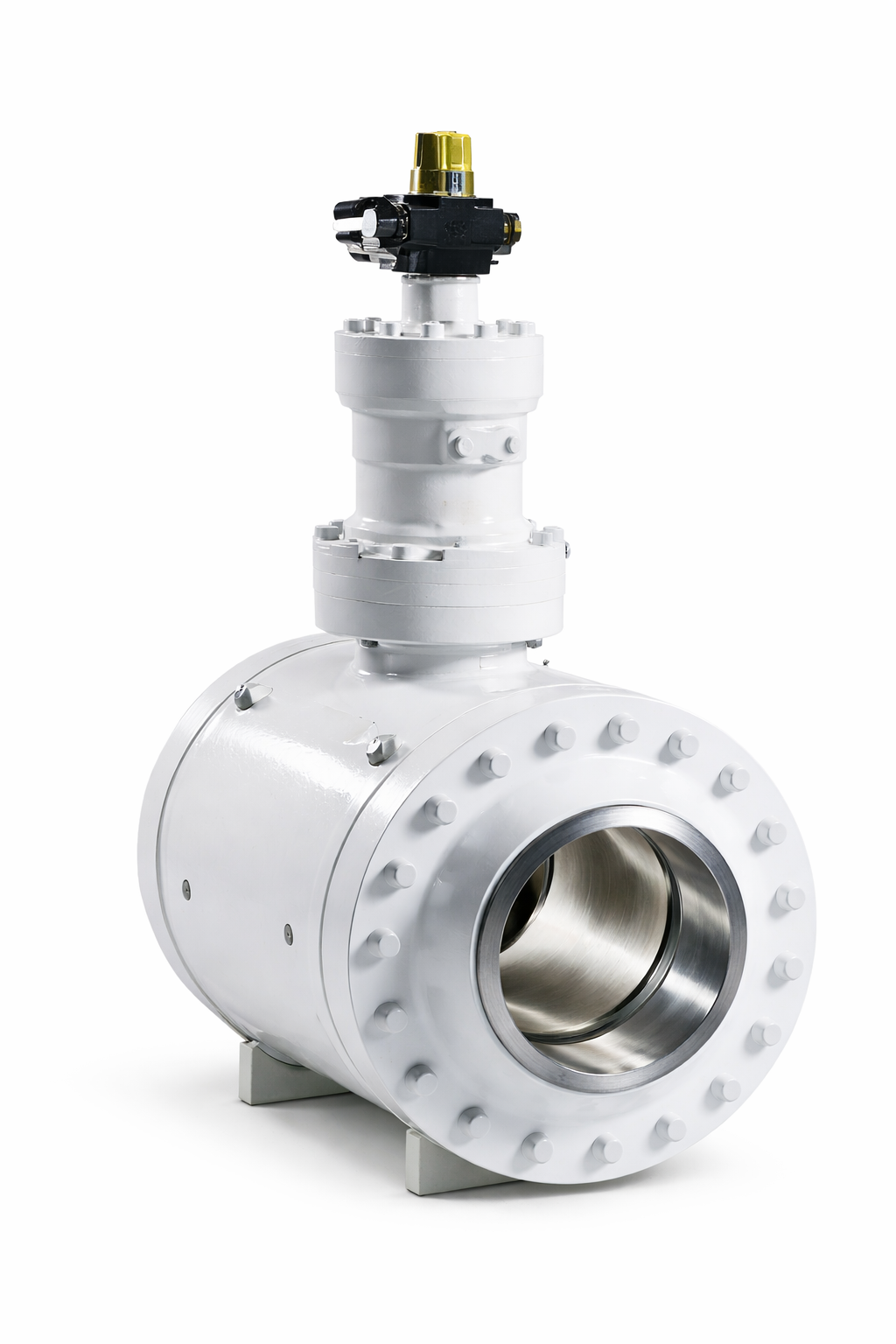

Diverter Valve Assembly, 10” × 9.062” bore ball valve, ANSI Class 300

Diverter Valve Assembly, 10” × 9.062” bore ball valve, ANSI Class 300, RTJ design with Nickel Alloy inlay. The valve is supplied with integral flanges and studded RTJ flange end connections, complete with a hydraulic actuator and electric feedback sensor. The assembly is suitable for demanding service conditions and complies with NACE and Fire Safe requirements.

Technical Specifications

• Valve Type: Bore Ball Valve, Diverter Configuration

• Size / Class: 10” ANSI 300 RTJ

• End Connections: RTJ Studded × Flanged, Nickel Alloy Inlay

• Part Number: 1058-1HHA11UFB

• CWP: 740 PSI

• Test Pressure: 1,110 PSI

• Operating Temperature: -20 °F to 200 °F

• Body Group Length: 17”

• Overall Length: 28-3/8”

Materials

• Body / Bonnet: A350-LF2, internal Xylan coating

• Ball: Carbon Steel with 1 mil ENP

• Stem: Inconel 718

• Seat Carriers: Carbon Steel with SBN / QPQ

• Seats: Celcon

• Seals: PC Nitrile

• Fasteners: A320-L7, Xylan coated

• Integral Flanges: A350-LF2 with Nickel Alloy RTJ inlay

Actuation & Accessories

• Actuator: Hydraulic actuator with electric feedback sensor

• Certification: ATEX

• Accessories: Electric / visual position beacon

• Accessory Manufacturer: TopWorx

• Model: DXP-M21YSEB

Coating & Finish

• Coating system per PPP-001

• Paint color: TBA

Standards & Compliance

• NACE compliant: Yes

• Fire Safe: API 6FA compliant

• PED / CE marking: Not included

• Built: 2015
