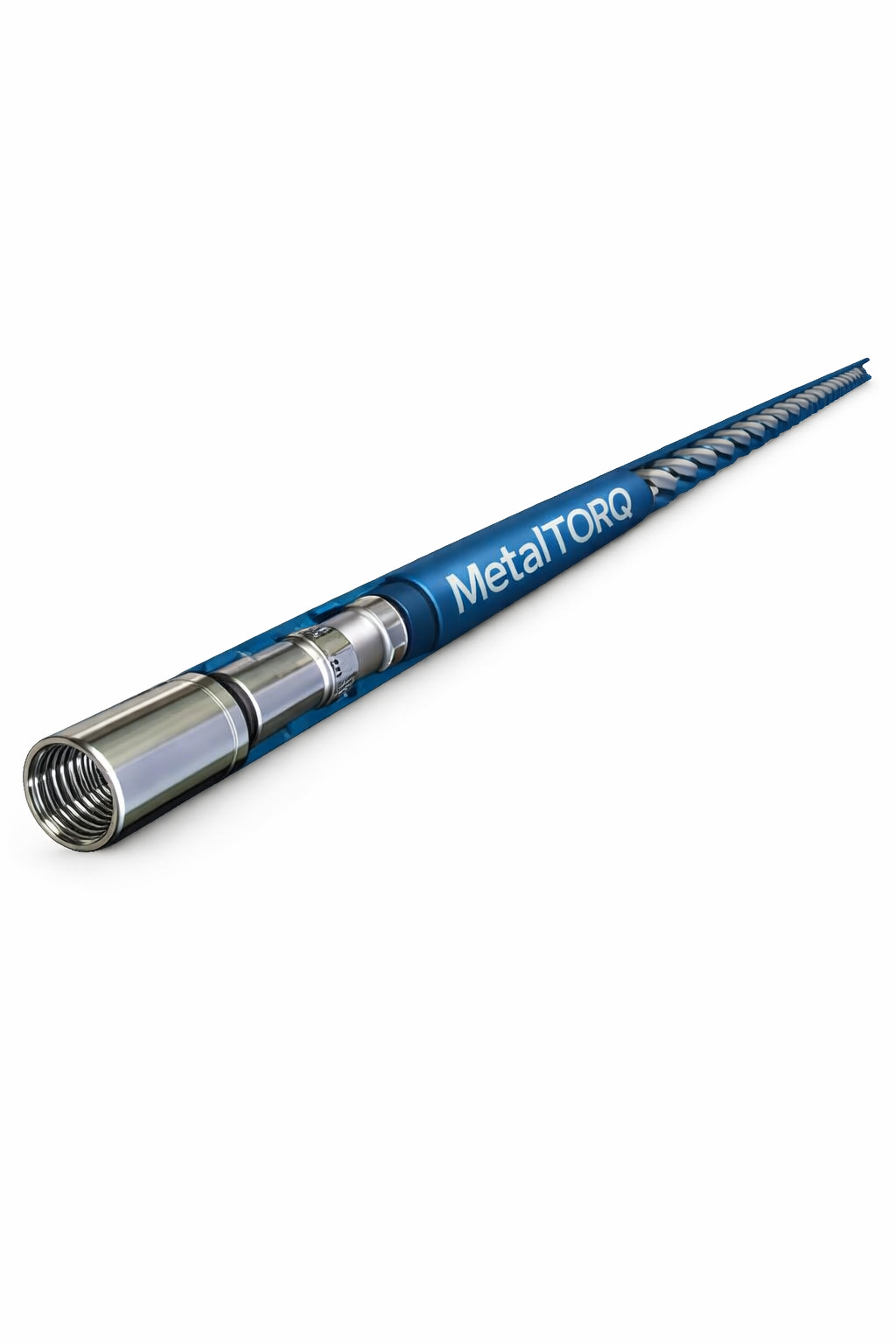

MetalTORQ PDM – 2-1/8” (54 mm OD)

Key Features

• Enhanced torque output (up to 880 Nm) for demanding milling and drilling operations

• Wider flow range for flexible operational deployment

• High-temperature capability up to 315°C (600°F)

• Optimized power section (5.5 stages / 9-10 lobes) for efficient energy transfer

• Robust construction for extended service life

• Premium connection design (1-1/2” AMMT Box x Box)

• Reliable performance in challenging downhole conditions

Performance Specifications

• Flow Rate: 40 – 100 gpm (150 – 380 lpm)

• Max Differential Pressure: 700 psi (48 bar)

• RPM Range: 240 – 600 rpm

• Operating Torque: 650 ft-lbs (880 Nm)

• Rotation: 6 rev/gal (1.60 rev/l)

Physical Specifications

• Outer Diameter: 2-1/8” (54 mm)

• Motor Length: 127” (3225 mm)

• Weight: 110 lbs (50 kg)

• Bit Size Range: 2¼” – 3½” (57 – 89 mm)

• Connection: 1-1/2” AMMT (Box x Box)

• Operating Temperature: up to 600°F (315°C)

Applications

• Heavy-duty milling operations

• Drilling in medium to large bore sections

• Clean-out and intervention work

• High-load and high-torque applications

• High-temperature well environments
