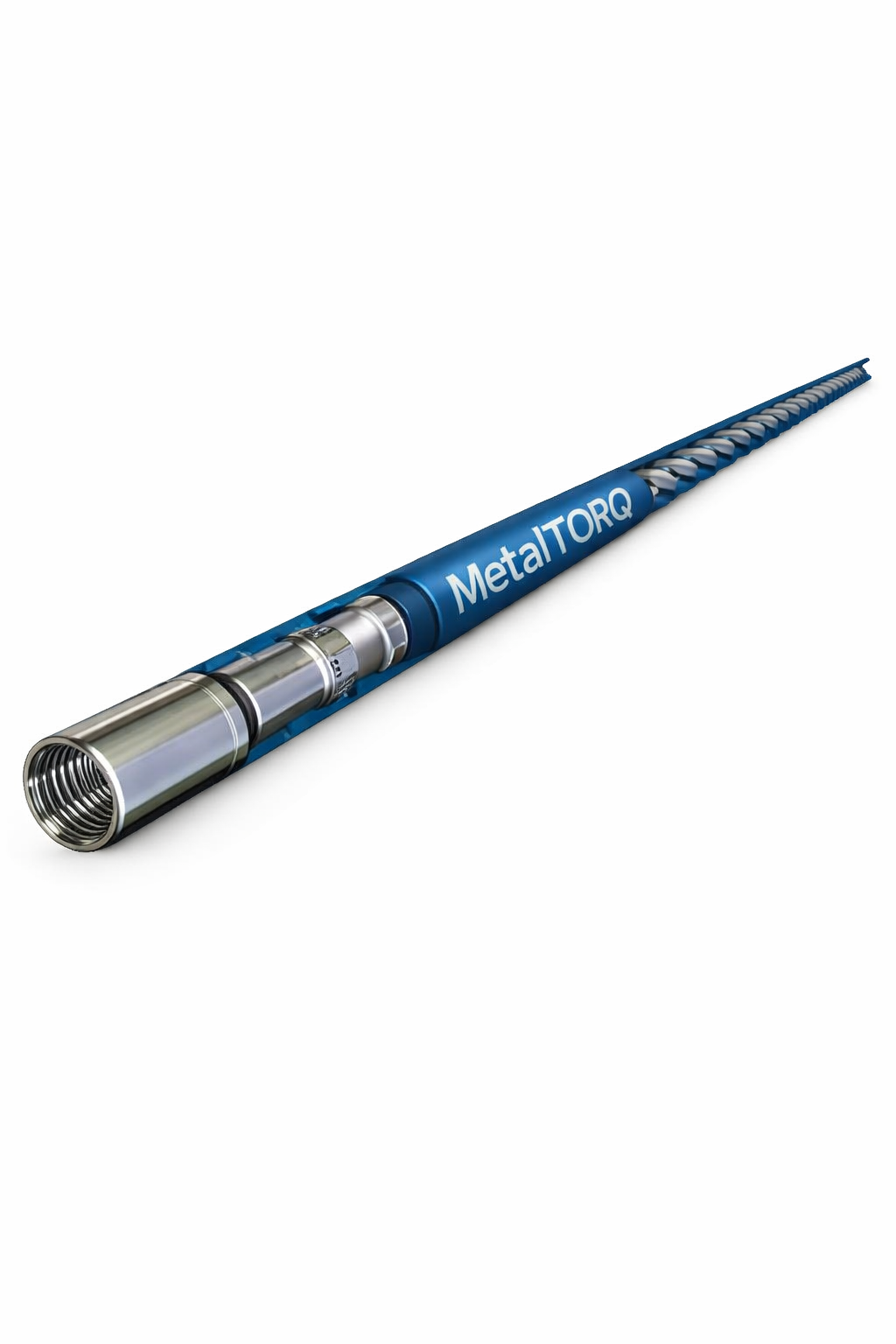

MetalTORQ PDM – 1-11/16” (43 mm OD)

Key Features

• Compact OD (43 mm / 1-11/16”) – slimhole and restricted access applications

• High torque output for efficient milling and drilling performance

• Wide operational flow range for flexible deployment

• High-temperature capability up to 315°C (600°F)

• Durable power section design (6.2 stages / 9-10 lobes)

• Precision-engineered connections (1” AMMT Box x Box)

• Optimized for continuous and reliable downhole operation

Performance Specifications

• Flow Rate: 20 – 50 gpm (75 – 190 lpm)

• Max Differential Pressure: 1000 psi (69 bar)

• RPM Range: 156 – 390 rpm

• Operating Torque: 250 ft-lbs (340 Nm)

• Rotation: 7.8 rev/gal (2.05 rev/l)

Physical Specifications

• Outer Diameter: 1-11/16” (43 mm)

• Motor Length: 118” (2995 mm)

• Weight: 64 lbs (29 kg)

• Bit Size Range: 1¾” – 3” (45 – 76 mm)

• Connection: 1” AMMT (Box x Box)

• Operating Temperature: up to 600°F (315°C)

Applications

• Milling operations

• Scale and debris removal

• Drilling in restricted wellbores

• Intervention and clean-out jobs

• High-temperature well environments
