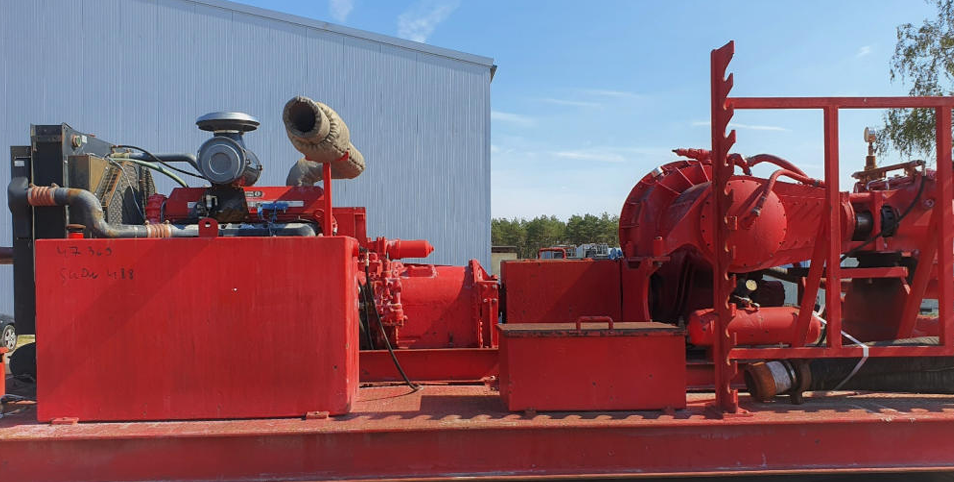

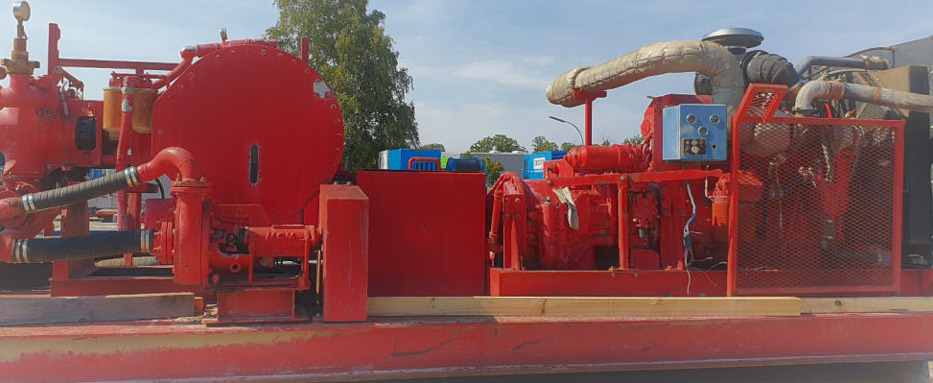

SINGLE PUMP SKID, HD 500 PUMP WITH DD SERIES 60 ENGINE AND ALLISON 6000 TRANSMISSION

SINGLE PUMP SKID
HD 500 PUMP WITH DD SERIES 60 ENGINE
AND ALLISON 6000 TRANSMISSION

DESCRIPTION

Carrier
9.3m long skid

Diesel Engine
DD S.60 430 hp @ 1800 rpm
transmission
Allison 6000 Series
Drive Line
Cardan Series
High Pressure Pump
Demay / Axxon HD 500
Fluid End Size
4 1/2”
Pressure outlet
2x Fig. 1502-3” Female
Plunger Lubrication
Oil Lube System
Controls System and
Instrumentation
Control panel with local control, transmission
manual shift
The approximate physical dimensions of this unit will be as follows:
Length: 9.3 m
Width: 2.42 m
Height: 2.4 m
Weight: 11,000 kg

price on request
