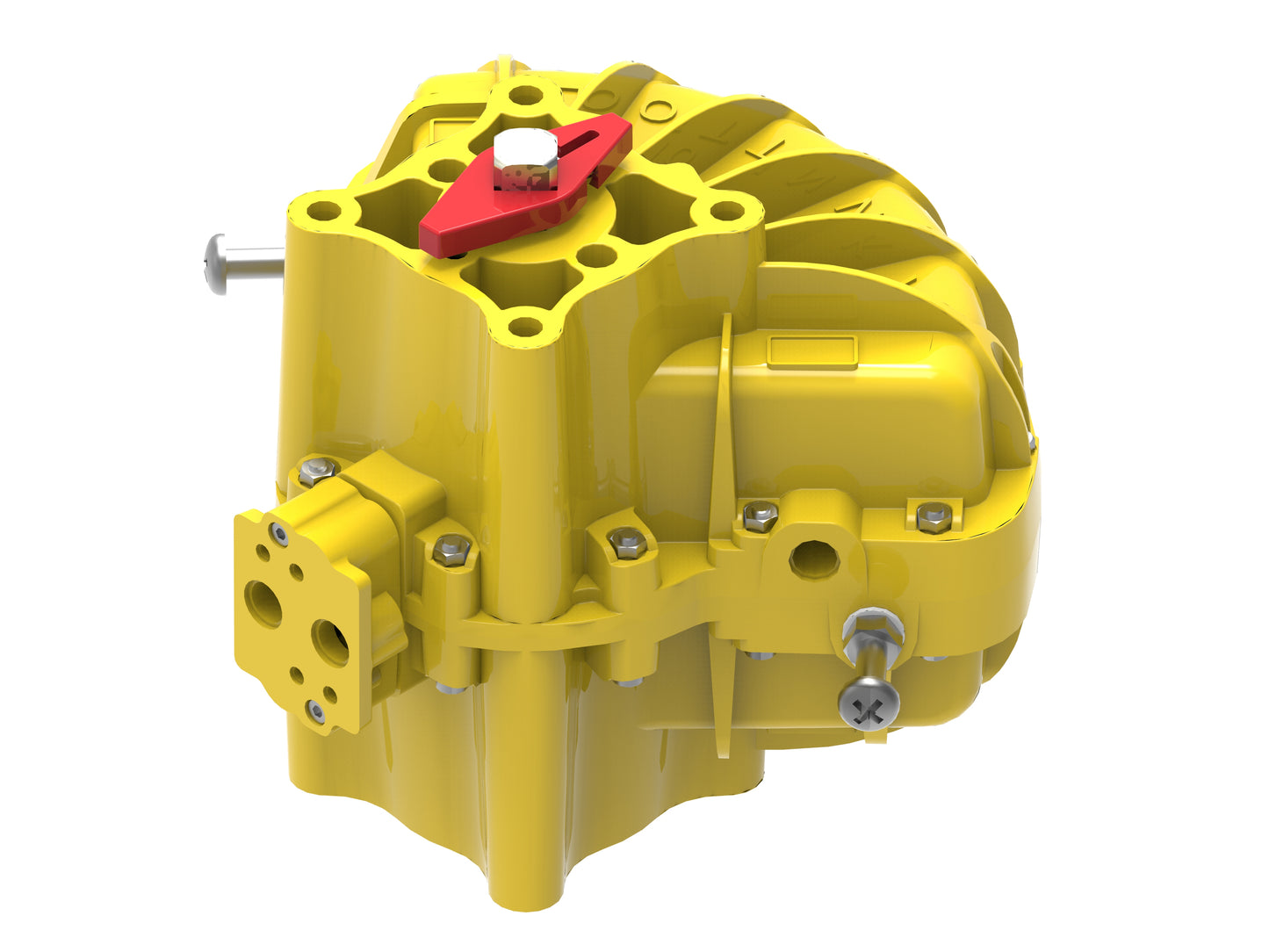

KINETROL rotary actuator 10A including limit switch unit

Working angle 78° to 100°

max. operating temperature -40°C to +80°C (with VITON up to +100°C)

Max. operating pressure range 7 bar Max. pressure shock resistance 10 bar Max. torque 416 Nm (at 7 bar) Air quality dry and oiled (air quality according to ISO 8573.1, class 4.5.5) Air displacement 1025 cm³ Weight 9.80 kg

Coating: Epoxy resin, powder-coated

Article number: 105895
