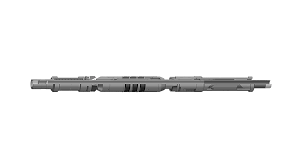

6.625" (17 - 24#) 7k ASI-X Packer CARBIDE Part No. 60367C

Product specifications (60367C)

• Hole size : 6.625 inches

• Weight range : 17–24 lb/ft

• Maximum outer diameter : 5.750 inches

• Minimum inner diameter : 2.50 inches

• Connection : 2-7/8 EUE

• Compressive strength : Up to 7,000 psi

• Setting mechanism : ¼ turn to the right to set and release

• Bypass system : Integrated to equalize pressure before releasing the upper grippers

• Application : Suitable for production, test, injection and production wells

The redress kit , part number 401693, is designed for the maintenance and reconditioning of the ASI-X packer. It contains all the necessary seals, elastomers, and wear parts to restore the packer to operational condition after use.
